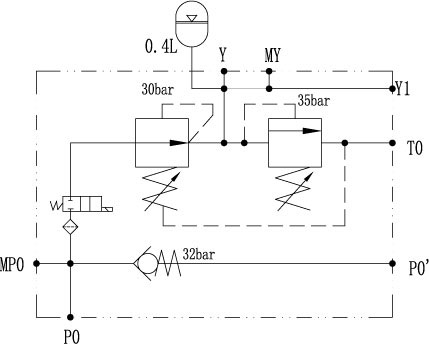

This product is suitable for the loading hydraulic control circuit of a crane truck and provides the complete machine system with stable oil source and offer flow needed by rotation.

Basic parameters:
1. Rated pressure: 25MPa;
2. Rated flow QH=80L/min
3. Accumulator: 0.4L (to be changed according to actual demand);
4. Pilot output pressure: 3.0MPa;
5. Overflow setting pressure: 3.5 MPa;
6. Working voltage of solenoid valve: 24VDC;
7. Setting pressure of check valve: 3.2MPa.
